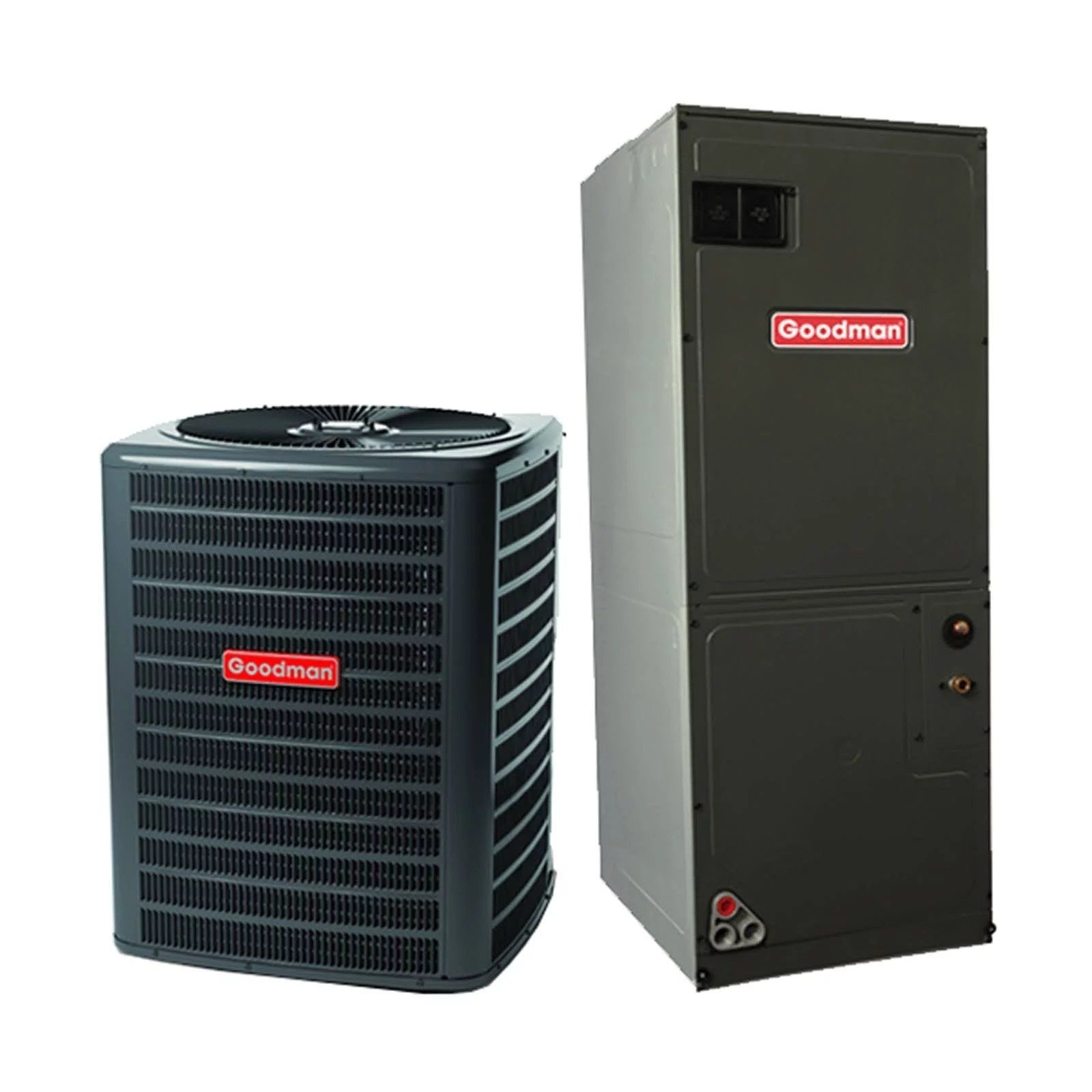

The Goodman GSZ14 Heat Pump will provide you with reliable cooling and heating at money-saving energy efficiency levels as compared to lower SEER heat pump units. Your Goodman air conditioner starts with an energy-efficient compressor, which operates in tandem with our high-efficiency coil. The coil is made of rifled refrigeration-grade copper tubing and corrugated aluminum fins in a design that maximizes surface area. These high-quality components together cool your home.
Standard Features:
- R-410A chlorine-free refrigerant
- High-efficiency scroll compressor
- SmartShift technology to ensure quiet reliable defrost
- Factory-installed bi-flow liquid-line filter drier
- Factory-installed suction-line accumulator
- Factory-installed compressor crankcase heater
- Factory-installed high-capacity muffler
- High- and low-pressure switches
- Service valves with sweat connections and easy access to gauge ports
- Copper tube/enhanced aluminum fin coil
- Fully charged for 15 ft of tubing length
- Contactor with lug connection
- Ground lug connection
- AHRI Certified; ETL Listed
Cabinet Features:
- Goodman sound control top design
- Steel louver coil guard
- Heavy-gauge galvanized-steel cabinet
- Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
- Top and side maintenance access
- Service ports and controls are accessible while unit is operating
- When properly anchored, meets the 2010 Florida Building Code unit integrity requirements for hurricane-type winds
The Goodman ARUF Air Handlers have consolidated the old ARUF and ADPF series into a brand new improved model. The SmartFrame Sub-Structure is at the heart of this design – a new skeleton which adds lateral stability to the chassis, new mounting locations for internal components and additional insulation retention. It also eliminates the need for external side and back screws. These new models are 4-way multi-position, capable of upflow downflow or horizontal airflow direction. Unit ships ready for upflow or horizontal left – downflow or horiz. right is a simple conversion process. The ARUF model has an unpainted finish, piston operation and flow rate expansion device.
Standard Features:
- All-aluminum evaporator coil
- Check flowrater expansion device for cooling-only and heat pump applications
- Direct-drive, multi-speed motor
- Transformer and blower time-delay on all units
- Easy single-bulb UV light compatibility
- Complies with the Factory-sealed Air Handling Credit with or without field-installed filter kits as listed in the 2001 Florida Building Code, Chapter 13, Section 610.2.A.2.1
- AHRI Certified; ETL Listed
Cabinet Features:
- New rigid SmartFrame cabinet
- 21 inches depth for easy attic access
- Galvanized leather grain-embossed finish
- Glue-less cabinet insulation retention
- Screw-less sides & back prevents condensation
- Multi-position capability: upflow, downflow, horizontal or vertical
- Coil-mounting track for quick repositioning
- Tool-less filter access accommodates standard-size filters
- Power supply entry at top; low-voltage entry at top and on left side
- Easily convertible 4-way design
- Multiple electrical knockouts
- Heavy-gauge bottom plate
Product Specification
| No Returns | No |
| Product On Sale | No |
| UPC | 646341721466 |
| Free Shipping | Free Shipping |
| GroupKit | Split System Kit (1.5 – 2.5 Ton) |
| Type | Heat Pump |
| Ton | 2.5 Ton |
| Seer | 14 Seer |
| Brand | Goodman |
| Category | Split Systems |
| Model Number(s) | GSZ140301 – ARUF31B14 |
| Brand | Goodman |
| Type | Heat Pump |
| Ton | 2.5 Ton |
| SEER | 14 |
| HSPF | 8.20 |
| Cooling Btu | 27,600 |
| Heating Btu | 26,600 |
| Cooling Stage(s) | 1 |
| Heating Stage(s) | 1 |
| Compressor Stage | Single |
| Blower Application | Multi-Position |
| Voltage | 208/230V |
| Electrical Phase(s) | 1 |
| Amp(s) | 30 |
| Hertz (Hz) | 60 |
| Decibel Level (dB) | 74 |
| Blower | Multi-Speed |
| Maximum CFM | 1,235 |
| Refrigerant Type | R-410A |
| Suction Valve Size (Inches) | 3/4 |
| Liquid Valve Size (Inches) | 3/8 |
| Total Shipping Weight (lbs.) | 282 |
| Outdoor Unit Height (Inches) | 36 1/4 |
| Outdoor Unit Width (Inches) | 29 |
| Outdoor Unit Depth (Inches) | 29 |
| Indoor Unit Height (Inches) | 53 7/16 |
| Indoor Unit Width (Inches) | 17 1/2 |
| Indoor Unit Depth (Inches) | 21 |
| Parts Warranty (Years) | 10 |
| Compressor Warranty (Years) | 10 |
| AHRI Certificate # | 7995113 |
| UPC # | 646341721466 |
